In hazardous areas, the temperature classification (T-rating) of Ex equipment is a critical factor in preventing explosions. Both the IECEx System and the ATEX Directives have established similar frameworks for classifying equipment based on its maximum surface temperature to ensure it remains below the ignition temperature of the surrounding explosive atmosphere.
The Fundamental Principle
Flammable gases, vapors, and dusts have specific auto-ignition temperatures (AIT) – the minimum temperature at which they will spontaneously ignite in air. To ensure safety, the maximum surface temperature of any part of the Ex equipment that could come into contact with the explosive atmosphere must be significantly lower than the AIT of the substances present.
Temperature Classes (T-Ratings)
Both IECEx and ATEX categorize equipment into temperature classes (T1 to T6) based on their maximum permissible surface temperatures under specified conditions (typically an ambient temperature range of -20°C to +40°C, unless otherwise stated).

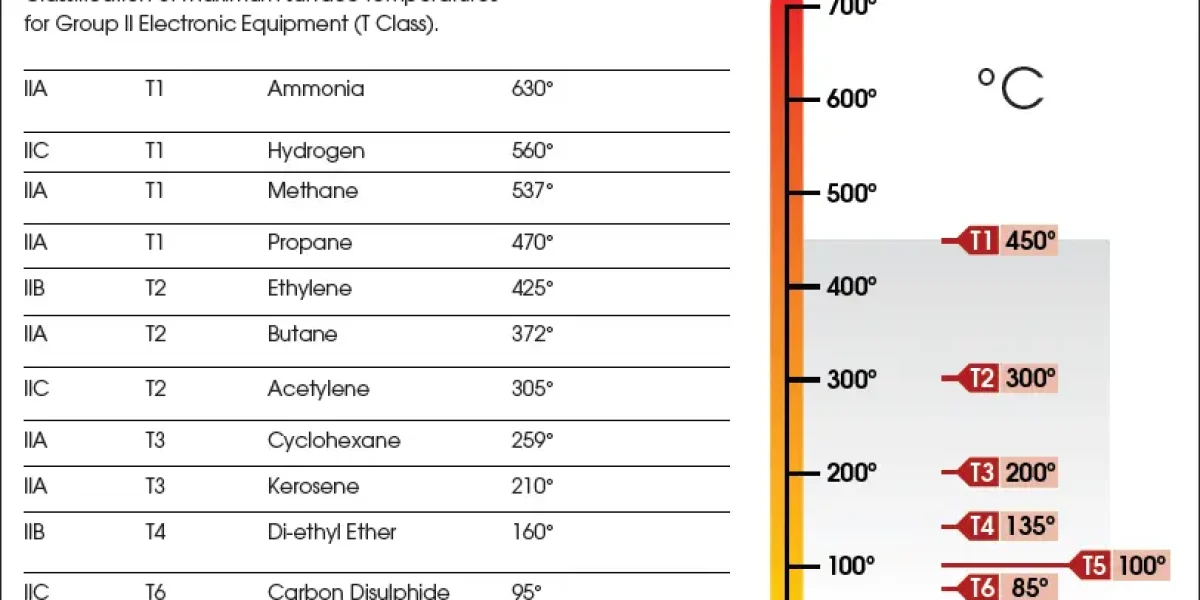

Here’s a table outlining the standard temperature classes and their corresponding maximum surface temperatures:
Temperature Class
Maximum Surface Temperature (°C)
T1
450
T2
300
T3
200
T4
135
T5
100
T6
85
Key Considerations:
- Matching Equipment to the Atmosphere: When selecting Ex equipment, it's crucial to ensure that its temperature class is appropriate for the hazardous atmosphere present. The maximum surface temperature of the equipment must be lower than the AIT of the gas, vapor, or dust. A safety margin is typically applied (e.g., staying below 80% of the AIT).
- Lower T-Number = Higher Risk: A lower T-number indicates a higher maximum surface temperature. Therefore, T6 rated equipment, with the lowest maximum surface temperature, is generally considered the safest as it's suitable for environments with substances having lower ignition temperatures.
- Equipment Marking: Both IECEx and ATEX require Ex equipment to be clearly marked with its temperature class as part of the overall Ex marking. This allows users to easily identify if the equipment is suitable for their specific hazardous area. For example, an ATEX marking might include "Ex d IIC T4 Gb," where "T4" indicates the temperature class.
- Ambient Temperature: The maximum surface temperature of the equipment is usually specified for a standard ambient temperature range. If the equipment is to be used in environments with higher ambient temperatures, the actual maximum surface temperature may be higher, and this must be taken into consideration during equipment selection. Some equipment markings may include a specific ambient temperature range (e.g., "Ta -20°C to +60°C").
- Dust Considerations: For dust atmospheres, while the T-rating system (T1-T6) is sometimes used, the maximum surface temperature is often directly stated in degrees Celsius (e.g., T85°C). Additionally, for dust, it's important to consider both the ignition temperature of a dust cloud and a dust layer, as these can differ significantly.
Example:
Conclusion:
Understanding temperature classification under IECEx and ATEX Directives is vital for ensuring the safe use of electrical equipment in hazardous areas. By carefully matching the T-rating of the equipment to the auto-ignition temperature of the flammable substances present, the risk of ignition and potential explosions can be significantly reduced, contributing to a safer working environment. Always consult the relevant standards and expert advice when selecting and installing Ex equipment.
