Choosing the correct cable gland sizes is critical for safe and reliable electrical installations. Incorrect selection can lead to loose fittings, water ingress, poor mechanical strength, and even electrical hazards.
This guide covers the most common cable gland size mistakes, explains how to read a cable gland size chart, matches cable size and gland size, and highlights essential cable gland accessories to prevent costly errors.
Understanding Common Cable Gland Size Mistakes
Many technicians and engineers often make mistakes due to:
Ignoring the cable OD when checking the cable gland size chart in mm
Using the wrong type of gland for armoured or unarmoured cables
Failing to consider environmental requirements (IP rating, outdoor conditions)
Skipping cable gland accessories like earth tags or shrouds
Mismatching the thread size with the panel or equipment entry
Even experienced professionals sometimes rely solely on memory instead of consulting the correct cable gland size chart PDF, which can lead to improper installation and long-term failures.
What Is a Cable Gland and Its Importance?
A cable gland is a mechanical device that secures and protects cables entering electrical equipment. It provides:
Strain relief to prevent cable pull-out
Environmental sealing to block dust, moisture, and chemicals
Mechanical protection for cable insulation and conductors
Electrical safety through proper earthing of armoured cables
Choosing the wrong cable gland size or type can compromise all these protections, which is why understanding the mistakes and referencing a gland chart is essential.
Cable Gland Parts Name
Understanding the cable gland parts name ensures proper installation and helps prevent mistakes. A standard cable gland consists of:
Gland Body: Main housing for the cable entry
Compression Nut: Secures the cable and applies pressure to the seal
Seal / Rubber Ring: Ensures environmental sealing
Armour Cone / Clamping Mechanism: Provides mechanical and earth continuity for armoured cables
Lock Nut: Holds the gland in place from inside the panel
Earth Tag: Ensures proper grounding of the armour
Shroud: Protects the gland from dust and moisture ingress
Failing to use or improperly installing any of these parts often leads to common mistakes, especially when using a cable gland size chart PDF.
Types of Cable Glands
Knowing the correct cable gland type is equally important as choosing the right size.
Single Compression Cable Glands
Designed for unarmoured cables, these provide basic sealing and strain relief. Commonly used indoors or in controlled environments.
Applications:
Electrical panels
Small industrial setups
Indoor machinery
Double Compression Cable Glands
Used for armoured cables, these provide compression at both the inner and outer sheath, ensuring sealing, mechanical strength, and grounding continuity.
Applications:
Industrial power cables
Outdoor installations
Hazardous areas
Referencing a double compression cable gland size chart PDF prevents selection errors and ensures safe installation.
Flameproof / A2F Cable Glands
Specially designed for hazardous zones, these glands prevent flame propagation inside enclosures. Mistakes happen when unarmoured A2F glands are used in unsuitable applications.
How to Avoid Cable Gland Size Mistakes
Step 1. Measure Cable OD Accurately
Always measure the cable diameter and check against the cable gland size chart in mm.
Step 2. Identify Cable Type
Armoured or unarmoured cables require different glands. Using the wrong type compromises safety.
Step 3. Match Gland Thread Size
Metric threads (M20, M25, etc.) must align with equipment entry points.
Step 4. Consider Environment
Outdoor or wet installations need IP-rated glands and proper cable gland accessories.
Step 5. Use Manufacturer Charts & PDFs
Always reference electrical cable gland size chart PDF or cable gland size chart PDF to avoid sizing errors.

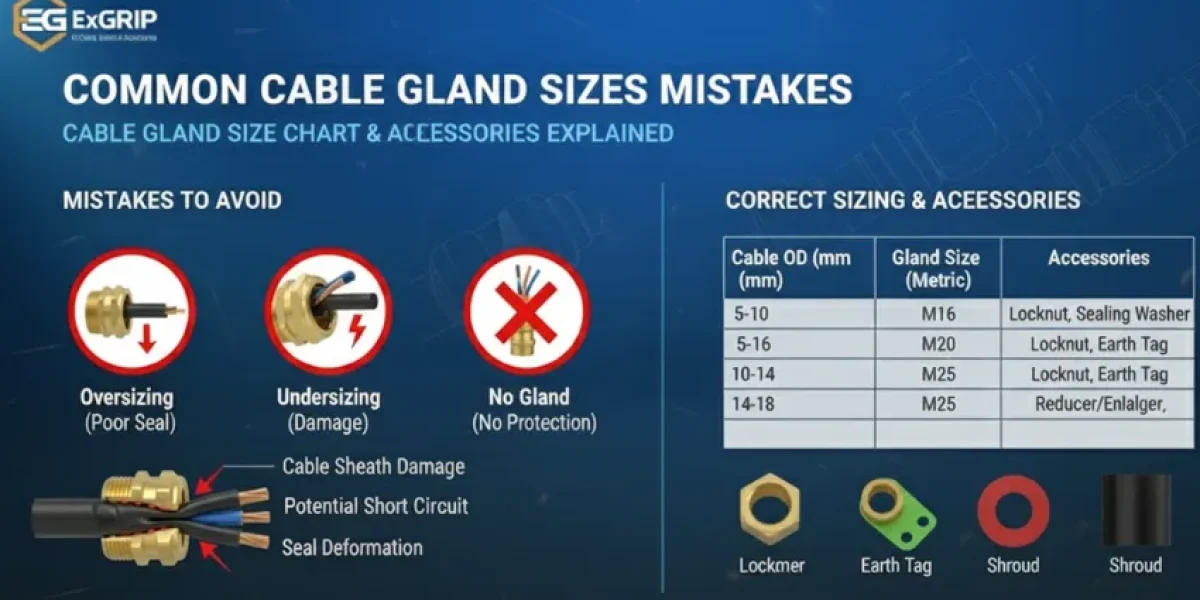

Common Cable Gland Size Chart Mistakes
| Mistake | Cause | How to Avoid |
|---|---|---|
| Wrong OD selection | Skipping measurement | Use cable gland size chart in mm |
| Wrong type selection | Confusing armoured and unarmoured | Identify cable type before selecting |
| Incorrect thread size | Ignoring panel entry | Check metric thread matches equipment |
| Missing accessories | Cost-saving or oversight | Include cable gland accessories like shrouds, earth tags |
| Skipping double compression reference | Assumption of compatibility | Always check double compression cable gland size chart PDF |
Cable Gland Accessories to Avoid Mistakes
roper cable gland accessories prevent installation errors:
Shrouds: Protect entry from moisture and dust
Earth Tags: Ensure electrical continuity for armoured cables
Lock Nuts: Secure the gland from panel vibration
Serrated Washers: Maintain mechanical grip
Reducers / Adapters: Fit glands to different thread sizes
Including the right cable gland accessories reduces the risk of common mistakes and increases safety.
Conclusion & Call-to-Action
Avoiding common cable gland size mistakes requires proper understanding of cable OD, gland type, and accessory use. Consulting the cable gland size chart PDF or electrical cable gland size chart PDF ensures safe, reliable, and compliant installations.
By following these guidelines, engineers and technicians can avoid errors, extend the lifespan of their installations, and maintain the safety of personnel and equipment.
📩 Talk to our technical team today at Exgrip.com
📞 Or call us directly for quick assistance!
Contact Us:
📞 Phone: +91 9537118899
🌐 Website: www.exgrip.com
📩 Request a Quote: Contact Page
FAQs
What are the most common cable gland size mistakes?
Ignoring cable OD, mismatching cable glands sizes, using wrong gland types, and skipping cable gland accessories.
How do I use a cable gland size chart correctly?
Measure the cable OD and consult the cable gland size chart in mm or cable gland size chart PDF provided by the manufacturer.
Can I use unarmoured glands for armoured cables?
No. Always use the correct type; armoured cables require double compression glands.
Why are double compression glands preferred?
They provide better sealing, mechanical strength, and grounding continuity for armoured cables glands.
What accessories are essential?
Cable gland accessories like shrouds, earth tags, lock nuts, and serrated washers are essential for safe installation.
What happens if I choose the wrong gland size?
It can lead to loose fittings, water ingress, mechanical failures, and even electrical hazards.
Can I download cable gland size charts for reference?
Yes, manufacturers often provide cable gland size chart PDF and electrical cable gland size chart PDF for on-site use.
Are flameproof glands necessary for all installations?
No. Only for hazardous zones. Mistakes occur when used incorrectly for unarmoured or indoor applications.
