Cable Gland Selection Chart
Cable Gland Selection Chart
| CABLE GLAND TYPES/SERIES | ||
|---|---|---|
| FOR UNARMOURED CABLE | ||
| Series | Compression Type | Type |

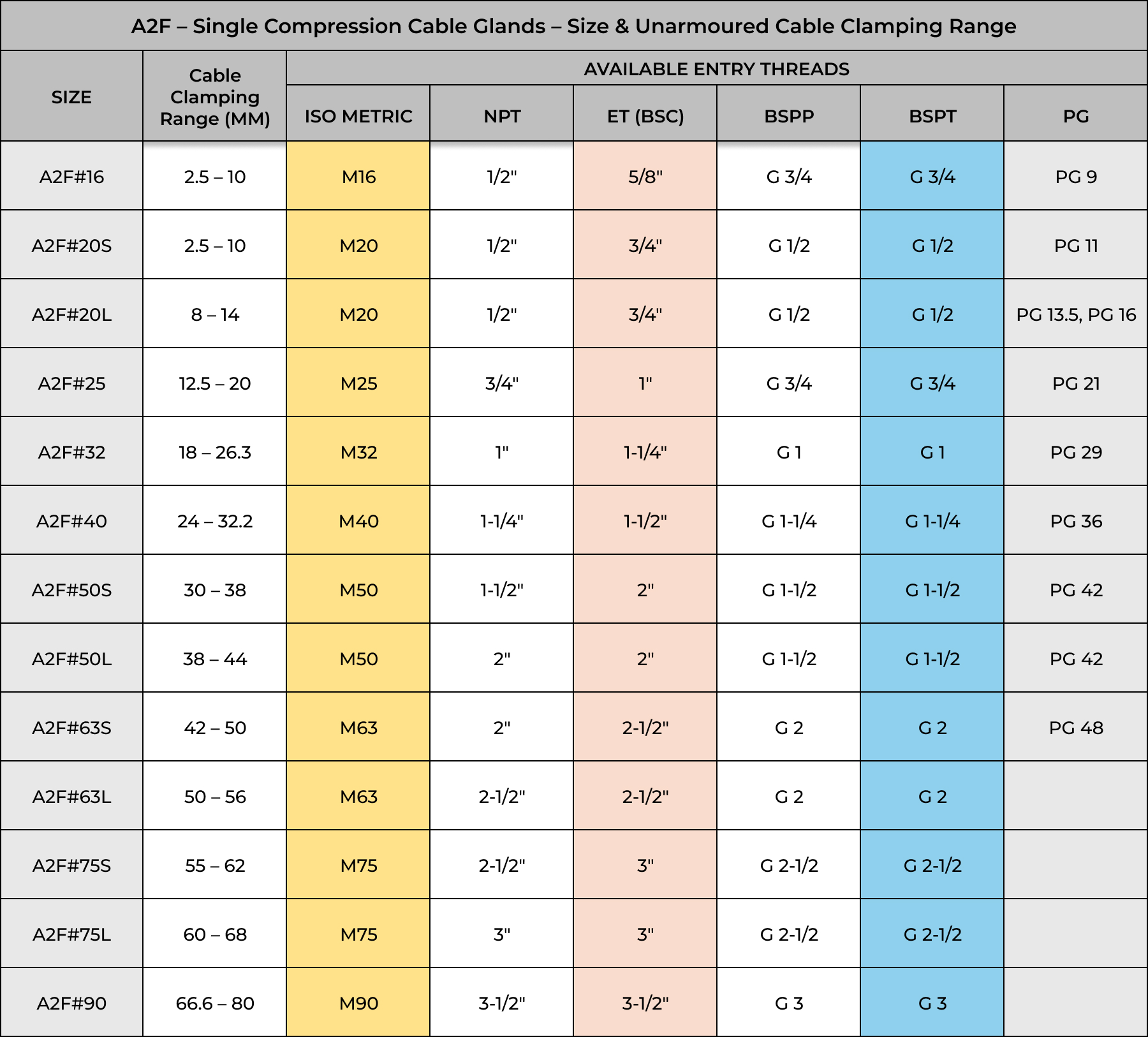

| A2F Series | Single Compression | Standard |

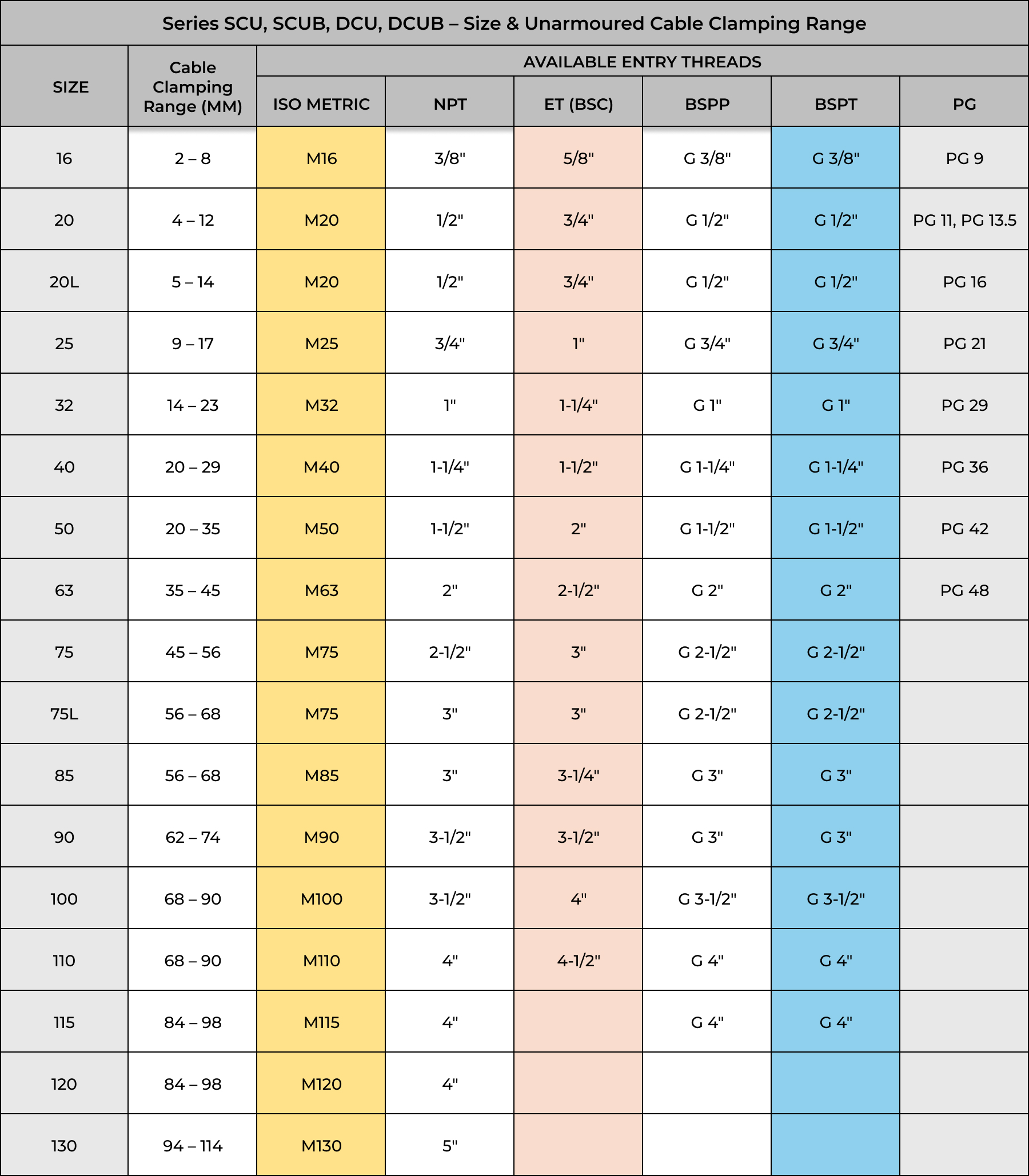

| SCU Series | Single Compression | Standard |
| SCUB Series | Single Compression | Barrier |
| DCU Series | Double Compression | Standard |
| DCUB Series | Double Compression | Barrier |
| FOR ARMOURED CABLE | ||
| Series | Compression Type | Type |

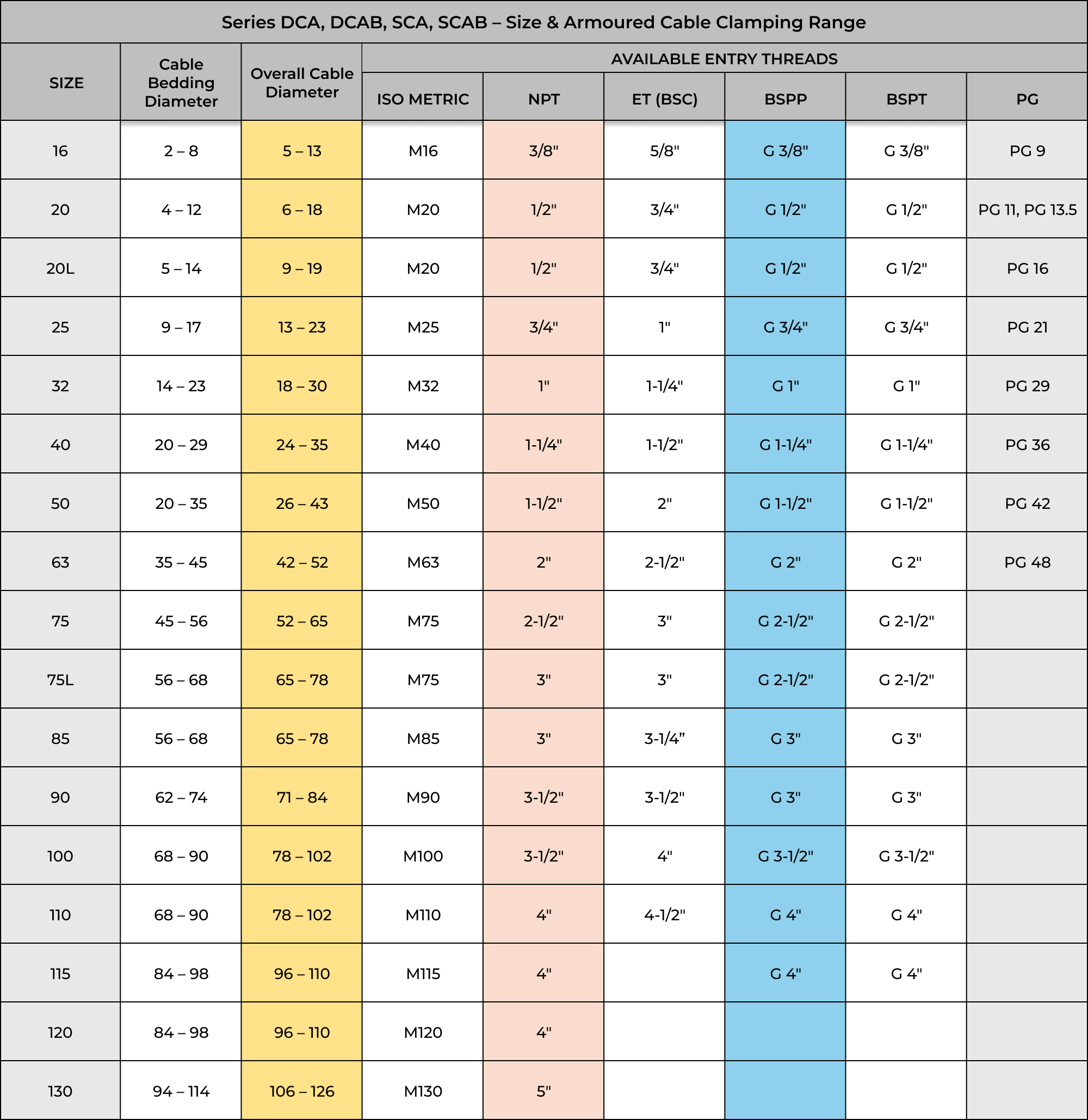

| SCA Series | Single Compression | Standard |
| SCAB Series | Single Compression | Barrier |
| E1FW Series | Double Compression | Standard |
| DCA Series | Double Compression | Standard |
| DCAB Series | Double Compression | Barrier |
| SIZE SELECTION CHART FOR ARMOURED CABLE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| *:- Note: These gland sizes* may be one size up, please measure actual cable size and compare with the min/max sizes in the appropriate glands group. | ||||||||||||
| Cable Size (mm2) | Nº of Cores | Steel Wire Armouring (SWA) | Cable Size (mm2) | Nº of Cores | Steel Wire Armouring (SWA) | |||||||
| Approx. Min cable bedding ø | Approx. Max cable bedding ø | E1FW Series - Double Compression Type Cable Gland Size | DCA-DCAB-SCA-SCAB Series Cable Gland Size | Approx. Min cable bedding ø | Approx. Max cable bedding ø | E1FW Series - Double Compression Type Cable Gland Size | DCA-DCAB-SCA-SCAB Series Cable Gland Size | |||||
| 1.0 | 2 | 8.0 | 9.5 | E1FW#16;20S16 | 16;20;20l | 10 | 2 | 12.3 | 13.5 | E1FW#20L | 20l;25 | |
| 1.0 | 3 | 9.1 | 9.6 | E1FW#16;20S16 | 20;20l | 10 | 3 | 13.1 | 20.7 | 20.7 | E1FW#32 | |
| 1.0 | 4 | 9.5 | 10.4 | E1FW#20S | 20;20l | 10 | 4 | 14.5 | 16.4 | E1FW#25S;25L | 25;32 | |
